$29.95

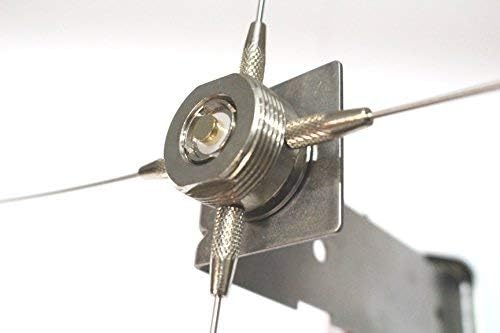

Nagoya GPK-01 Ground Plane Kit for NMO Mounts – 21″ Radials, SO-239 Connector, for Base/Field Use – Durable & Easy Installation on 2″ Pole/Mast
In stock
| Brand | BTECH |
|---|---|
| Item model number | Nagoya GPK-01 |
| Item Weight | 1.41 ounces |
| Product Dimensions | 17 x 0.5 x 0.1 inches |
| Item Dimensions LxWxH | 17 x 0.5 x 0.1 inches |
| Color | Stainless Steel |
| Department | Two Way Radio |
| Manufacturer | BTECH |
| Is Discontinued By Manufacturer | No |
| Date First Available | July 20, 2017 |
The Nagoya GPK-01 Ground Plane Kit stands as a premier solution for establishing a robust ground for base or field-mounted antennas. Meticulously designed for seamless integration with NMO HF, VHF, and UHF antennas, this kit ensures optimal performance and reliability in various deployment scenarios. Whether you’re setting up a command center in the field or enhancing your home base station, the GPK-01 provides a solid foundation for your communication needs.
The GPK-01 not only facilitates easier antenna deployment but also significantly boosts your radio’s transmitting gain in comparison to standard factory antennas. Depending on your specific needs, choose the ideal antenna length for the perfect balance between portability and performance. With the GPK-01’s 200W power rating and 100 MPH wind load capacity, rest assured your antenna setup is built to last, regardless of the environmental challenges.
Nagoya antennas are each individually analyzed to ensure compatibility with your radio.
Nagoya Antennas are dependable, accurate, reliable, and affordable.
Avoid antennas that pretend to be a Nagoya. Antennas that are not individually tested or tuned can cause high SWR, which damages a radio.
Nagoya Antennas are proven to be a reliable and safe antenna manufacturer.
The RB-50 is a magnetic mount that is ideal for vehicle users looking for a quick and effortless installation. It boasts a strong magnetic base for secure attachment and comes with 18 feet of RG-58A/U cable, complete with a PL-259 connector for a reliable connection to your radio setup.
For those who prefer a more permanent mounting solution, the RB-100N is an excellent choice. This mount can be installed either by drilling a hole to support the NMO mount directly or using the included L bracket for attachment to a vehicle or to a grounded location at home. It includes 20 feet of RG-58A/U cable, allowing for greater flexibility in antenna placement.
The RB-700N is a versatile and user-friendly lip mount, perfect for those needing a secure yet non-invasive mounting solution for vehicles. It easily attaches to doors, trunks, or any metal lip, and features rotatable adjustments for flexible antenna positioning at any angle. This ensures optimal signal reception. Protective pads are included to prevent vehicle surface damage. Additionally, it comes with 20 feet of RG-58A/U cable for convenient antenna placement, enhancing your radio communication’s quality and reliability.

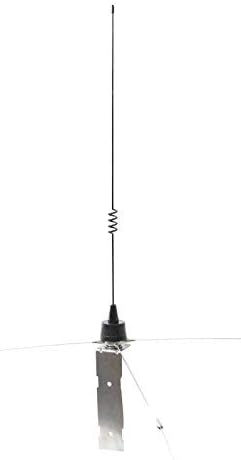

The GPK-01 ground plane kit is designed for temporary base camps or home antenna setups. This kit enhances the performance of NMO antennas by providing a ground plane, and it features grounded radials. It’s designed for easy attachment to a mast or in-ground stake, making it a versatile option for stationary setups. Cable is not included, and you would need to supply your own run of PL-259 Coax
Features | RB-50 HD Magnet Mount | RB-100N Drill/Bracket Mount | RB-700N Lip Mount | GPK-01 Pole and Mast Mount |
|---|---|---|---|---|
|
|
|
| |
| Price | — | — | $48.89 | $33.98 |
| Antenna Mount Type | NMO | NMO | NMO | NMO |
| Includes Coax | 18 feet of RG-58A/U with PL-259 connector | 20 feet of RG-58A/U with PL-259 connector | 20 feet of RG-58A/U with PL-259 connector | |
| Designed for Base and Field Use | ✓ | ✓ | ||
| Designed for Vehicle Use | ✓ | ✓ | ✓ | |
| Rated Power | 200W | 200W | 200W | 200W |
| Ensures effective antenna grounding when correctly installed | ✓ | ✓ | ✓ | ✓ |
Features | NMO-72 | NMO-200A | NMO-200C | TB-320A |
|---|---|---|---|---|
|
|
|
| |
| Price | $33.98 | $47.89 | $47.89 | $57.89 |
| Antenna Type | Mobile or Base Mount Required: Suitable for Base or Mobile Installation | Mobile or Base Mount Required: Suitable for Base or Mobile Installation | Mobile or Base Mount Required: Suitable for Base or Mobile Installation | Mobile or Base Mount Required: Suitable for Base or Mobile Installation |
| Center Tuned Frequency (MHz) | 144 - 430 | 144 - 440 | 155 - 460 | 144 - 220 - 440 |
| Gain (dBi) | 2.15 - 3.5 | 3.0 - 5.5 | 3.0 - 5.5 | 2.15 - 3.8 - 5.5 |
| Wave | 1/2λ - 5/8λ | 1/4λ - 2*5/8λ | 1/4λ - 2*5/8λ | 1/4λ - 1/2λ - 2*5/8λ |
| Power (Watts) | 100 | 200 | 200 | 200 |
| VSWR: ≤ 1.5, Impedance: 50Ω | ✓ | ✓ | ✓ | ✓ |
| Connector | NMO | NMO | NMO | PL-259+NMO |
| Height | 19.17"(48.7CM) | 38.4" (97.5CM) | 38.4" (97.5CM) | 38.5" (97.8CM) |
| User | AMATEUR | AMATEUR | GMRS-MURS-COMMERCIAL | AMATEUR |
Features | UT-72 | UT-72G | UT-308UV |
|---|---|---|---|
|
|
| |
| Price | $34.89 | $34.89 | $34.89 |
| Antenna Type | Plug and Play Magnetic: Simple, Instant Setup with Magnetic Base (includes adaptors for handheld or mobile radios) | Plug and Play Magnetic: Simple, Instant Setup with Magnetic Base (includes adaptors for handheld or mobile radios) | Plug and Play Magnetic: Simple, Instant Setup with Magnetic Base (includes adaptors for handheld radios) |
| Center Tuned Frequency (MHz) | 144 - 430 | 155 - 462 | 144 - 430 |
| Gain (dBi) | 1.7 - 3.5 | 1.7 - 3.5 | 1.7 - 4.15 |
| Wave | 1/4λ - 5/8λ | 1/4λ - 5/8λ | 1/4λ - 5/8λ |
| Power (Watts) | 80 | 80 | 80 |
| VSWR: ≤ 1.5, Impedance: 50Ω | ✓ | ✓ | ✓ |
| Connector | PL-259 + SMA (F) | PL-259 + SMA (F+M) | SMA (F) |
| Height | 20.27" (51.5CM) | 18.7" (47.5CM) | 20.55" (52.2CM) |
| Cable | 13' (4M) RG-58A/U | 13' (4M) RG-58A/U | 10' (3M) RG-58A/U |
| User | AMATEUR | GMRS-MURS-COMMERCIAL | AMATEUR |
Nagoya GPK-01 Ground Plane Kit for NMO Mounts – 21″ Radials, SO-239 Connector, for Base/Field Use – Durable & Easy Installation on 2″ Pole/Mast
