  • Advanced Communication Compatibility: Experience unparalleled communication with support for both Analog and DMR Tier 1 & 2 networks, as well as MOTOTRBO compatibility. The Talker Alias feature enriches your network interactions by displaying the identity of the speaker directly on your device, facilitating clearer and more personalized communication. Coupled with both Analog and Digital APRS (TX Only), this radio enables effective data sharing and real-time location tracking. Ideal for sophisticated team coordination and comprehensive network management, the DMR-6X2 ensures you stay connected and informed across diverse communication environments.
  • Exclusive BTECH Firmware for Enhanced Customization and Stability: Elevate your communication with our proprietary BTECH firmware, meticulously designed to enhance the dependable 868/878 platform. This upgrade introduces additional features for a more intuitive and responsive user experience, coupled with enhanced performance stability. BTECH continuously improves your radio with easy firmware updates, adding new features and enhancing existing ones based on user feedback.

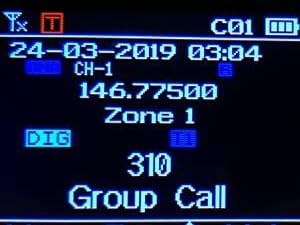

  • Large Database Supported: Over 4000 channels, 10,000 talk groups, and 200,000 contacts with a large, easy-to-read TFT color display for optimal organization and accessibility.
  • Unmatched Security with AES256 Encryption: Safeguard your communications with military-grade AES256 encryption, ensuring your conversations remain private, secure, and protected from eavesdropping — a must-have for professional settings where security is paramount.

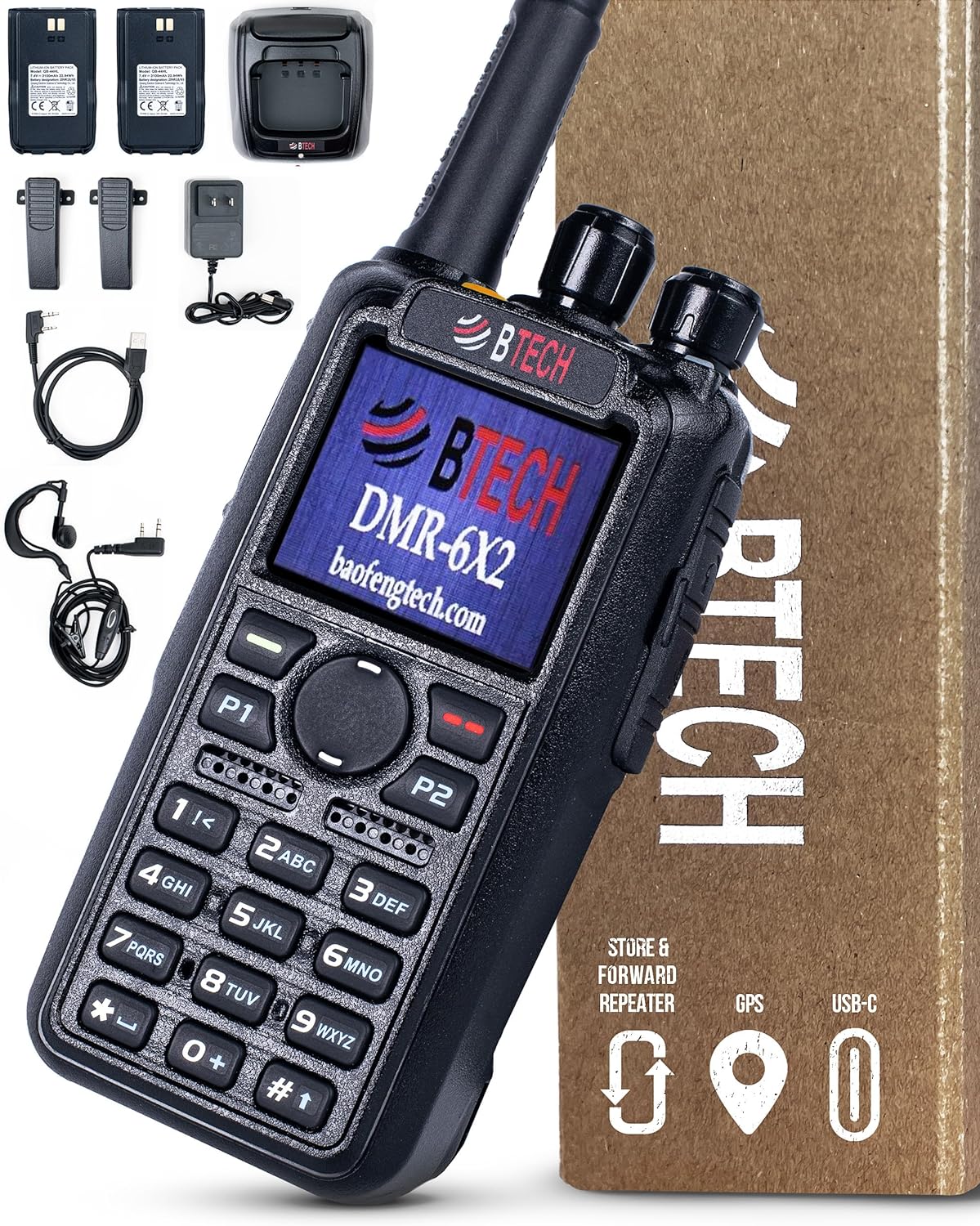

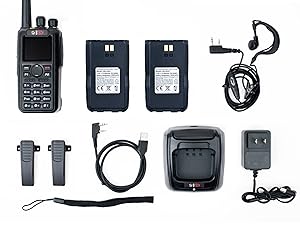

  • What’s in the Box: DMR-6X2, 3100 mAh High Capacity battery, 2100 mAh standard battery, 2 Belt Clips, Programming Cable, Charger Base, Charger Transformer, Earpiece Kit, 6″ Dual Band Antenna, Wrist Strap, User’s Manual

Nagoya Antenna Specification and Comparison Chart

DMR & Analog Dual-Band Radio

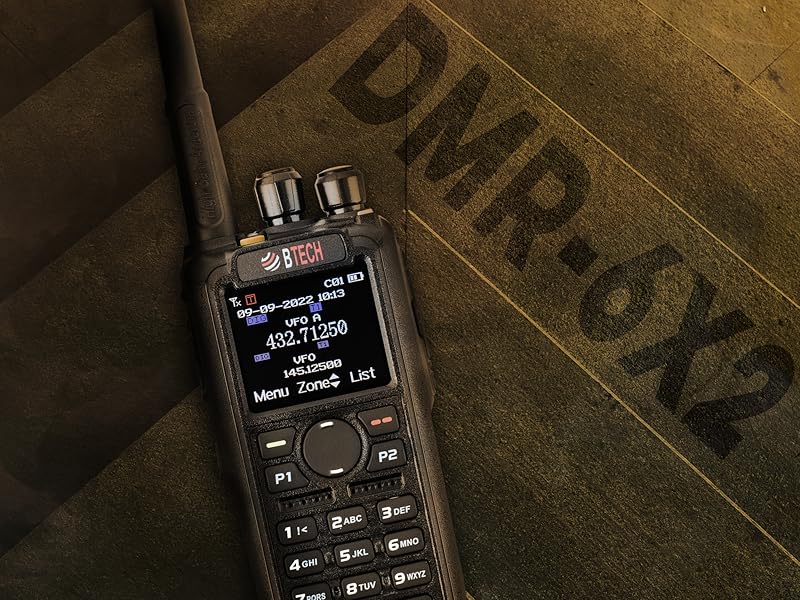

BTECH DMR-6X2 – Where Performance Meets Reliability

The BTECH DMR-6X2 is the ultimate dual-band (VHF/UHF) radio for professionals and serious amateur operators. With a powerful 7W VHF and 6W UHF output, it offers APRS, advanced encryption, and satellite functionality. Built for demanding environments, it supports 4,000 channels and 200,000 contacts, with ongoing firmware upgrades to keep you ahead. Experience seamless connectivity, robust features, and full customization. Download software at baofengtech.com/dmr.

Seamless Range Extension, No Missed Call

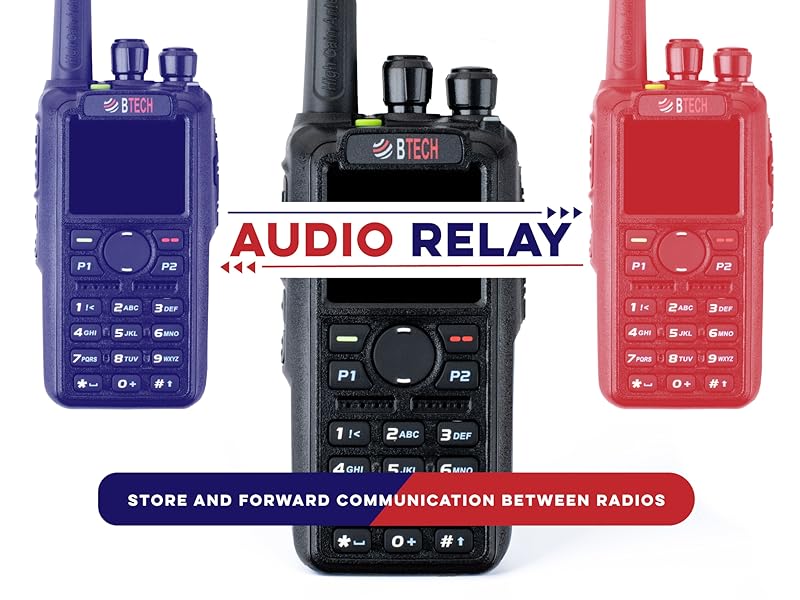

Store & Forward Repeater – Uninterrupted Communication

Empower your DMR-6X2 with a built-in digital recording chip that captures transmissions and instantly rebroadcasts them across the same or different bands. By linking coverage gaps, Store & Forward ensures no critical call goes unheard in challenging terrain. Easily activate it via a side key to extend range without extra hardware. Whether coordinating teams in sprawling venues or navigating remote areas, it delivers uninterrupted communication.

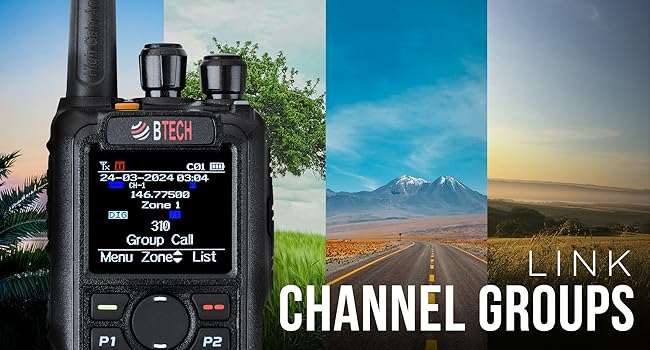

Easily Link Channel Groups with the DMR-6X2

The DMR-6X2 allows scanning across multiple zones by linking channel groups, unlike other radios which limit scans to single zones. Users can create scan lists with channels from different zones, enabling seamless monitoring without manual switching.

Advanced APRS Real-Time Location Data

BTECH’s DMR-6X2 fully supports analog (TX only) and digital (TX and RX) APRS, letting you transmit and receive real-time location updates wherever you go. The built-in GPS ensures accurate beaconing and rapid updates. Stay connected, track team positions, and share vital info without extra gear.

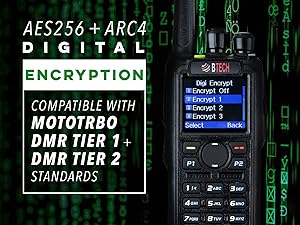

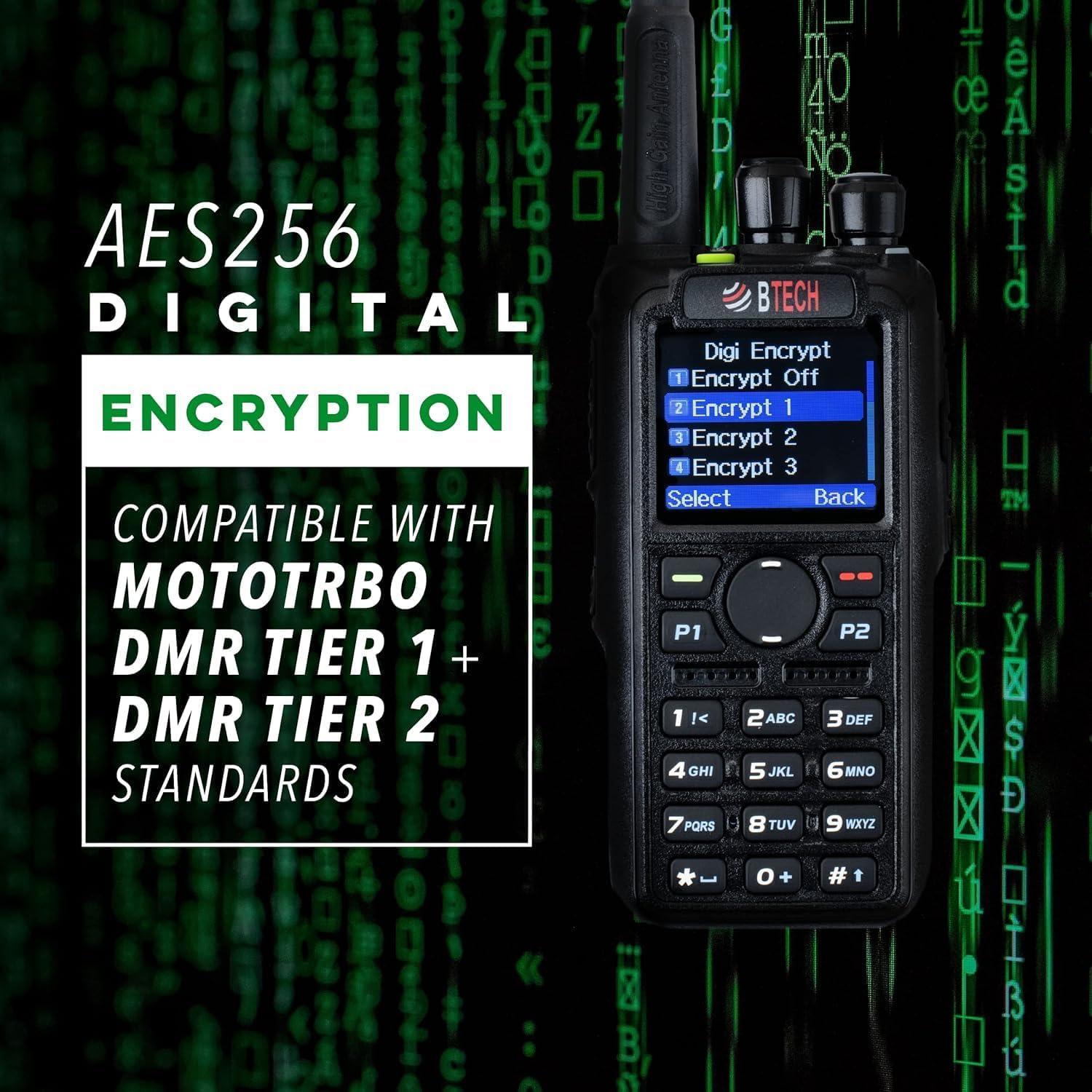

Robust AES & ARC4 Encryption

Safeguard communications with AES256 and ARC4 encryption. Perfect for secure commercial use, yet versatile for various operational needs.

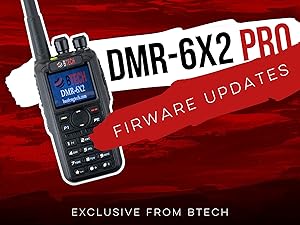

Exclusive BTECH Firmware

Unlock unique features unavailable in similar models. Enjoy advanced programming, specialized bug fixes, and frequent updates from BTECH experts.

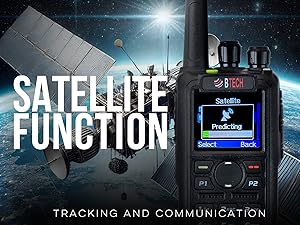

Satellite Comm & Tracking

Access satellites for extended reach and real-time positioning. Perfect for licensed amateurs seeking advanced global communication capabilities.

Comprehensive Accessory Set

Compatible with SMA-F antennas, Kenwood K1 accessories, and Bluetooth devices. Tailor your setup for professional-grade performance.

Rugged Build, Upgradeable Tech

Built to withstand tough conditions and easily updated with new features, security patches, and performance boosts via firmware upgrades.

Efficient Adhoc Communication

Hold ‘0’ to start a group or private call. The radio shows adhoc contact details on-screen for easy communication.

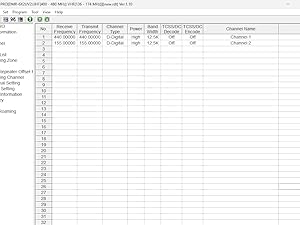

Seamless Codeplug Conversion

Effortlessly import Anytone codeplugs and maintain your settings. Updated tools add more data fields for a hassle-free upgrade process.

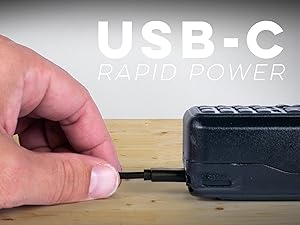

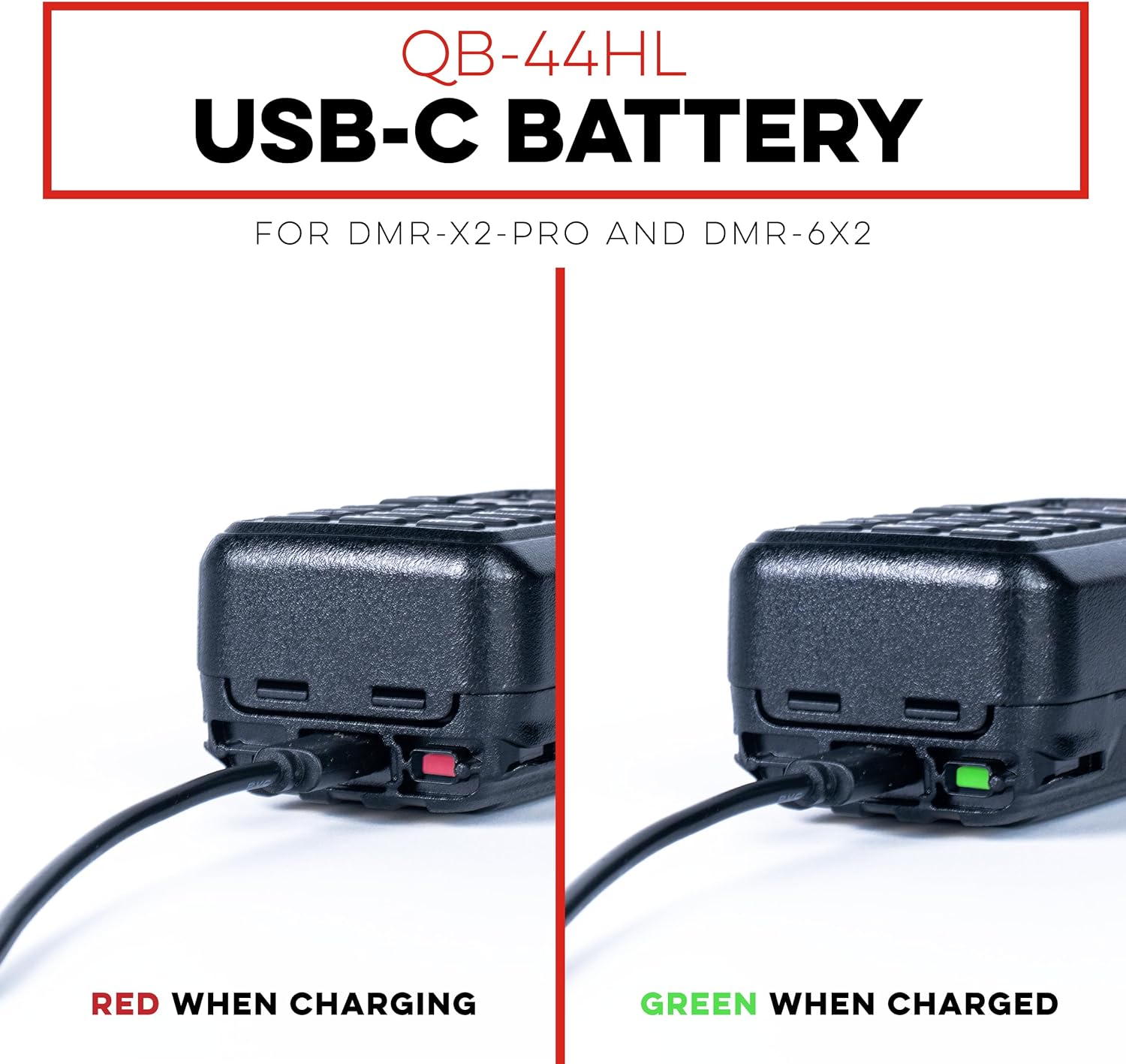

USB-C & 3100mAh: Rapid Power

Charge quickly and efficiently with the new 3100mAh battery via USB-C. Enjoy extended runtime and fast power-ups wherever your mission takes you.

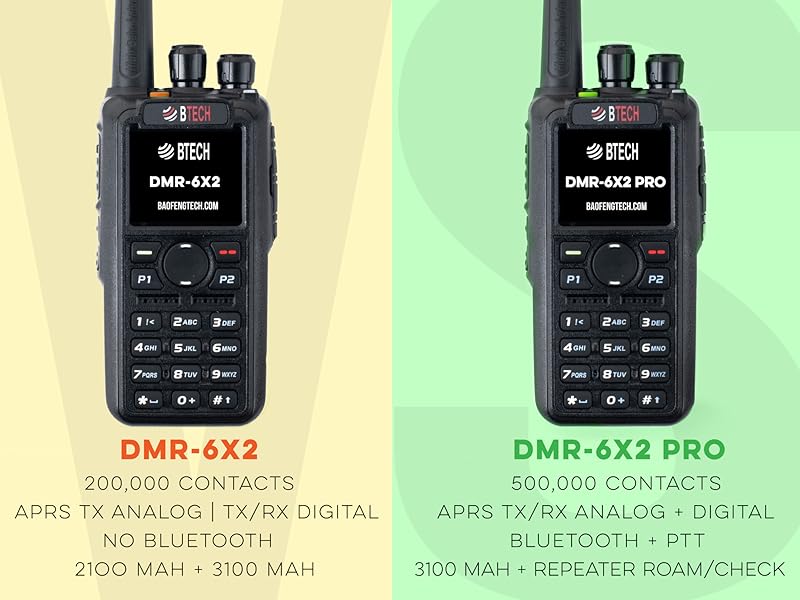

Key differences between DMR models
Compare the DMR-6X2 vs. DMR-6X2 PRO: Features, Upgrades, and Performance

The DMR-6X2 and DMR-6X2 PRO differ in key areas. The DMR-6X2 supports 200,000 contacts, while the PRO supports 500,000. APRS on the DMR-6X2 offers TX in analog and TX/RX in digital, whereas the PRO enables APRS TX/RX in both analog and digital. The DMR-6X2 lacks Bluetooth, but the PRO includes built-in Bluetooth and Bluetooth PTT. Battery options for the DMR-6X2 include 2100mAh and 3100mAh, while the PRO includes a 3100mAh battery. The PRO also adds advanced GPS repeater roaming and checking.

Memory & Storage Channels up to 4,000, Zones up to 250 (up to 250 channels per zone), Digital Contacts 200,000, Talkgroups 10,000, Call Logs up to 200 recent calls in digital mode.
Transmitter Power Output (VHF): 7 W (High), 5 W (Mid), 2.5 W (Low), 1 W (Low1). Power Output (UHF): 6 W (High), 5 W (Mid), 2.5 W (Low), 1 W (Low2). Modulation: Analog FM (16K0F3E/11K0F3E) wide/narrow, Digital (DMR) 4FSK. Audio Distortion: ≤3% at 1 kHz typical (FM and DMR). FM Hum & Noise: ≥40 dB (wide), ≥36 dB (narrow). Spurious Emissions: ≤ –36 dBm (<1 GHz).
Receiver Sensitivity (12 dB SINAD): Analog ~0.3 μV (~1.1 μV emf); Digital BER (5%): ~0.3 μV (–117.4 dBm typical). Adjacent Channel Selectivity: ≥60 dB (narrow), ≥70 dB (wide). Intermodulation: ≥70 dB. Spurious Rejection: ≥70 dB. Audio Output Power: 1 W (internal speaker @ 16 Ω). Audio Distortion: ≤3% @ 1 kHz typical.
Encryption & Security Encryption Methods AES256 and ARC4 (40-bit). Encryption Keys programmable via CPS (copy/paste key management). Promiscuous (Digital Monitor) Mode allows listening to all DMR traffic on the current frequency regardless of color code, timeslot, or talkgroup.
APRS & GPS Supports TX & RX in Digital modes and TX in Analog modes. GPS includes a built-in receiver for location tracking and beacons. Sends Data in real-time on-screen, supports advanced features like Satellite Tracking. Allows communication and tracking via amateur radio satellites.
Firmware & Software Firmware upgradeable. CPS available for Windows (USB programming cable included). Codeplug support includes import/convert of Anytone AT-D868UV/AT-D878UV codeplugs. Channel & Contact management features. CSV import/export, APRS field management, and encryption key management.
Store & Forward Repeater Mode is Digital Store & Forward (cross-band or same-band). Activation is assignable to a side key. Function receives transmissions, digitally records them, then automatically re-transmits to extend coverage or bridge frequencies.
Battery & Power 3100 mAh Li-ion (USB-C rechargeable) & 2100 mAh Li-ion (no USB-C). Operating Voltage 7.4 V nominal. Battery Life up to 35 hours with 3100mAh (standby/low-power usage) or 24 hours with 2100mAh. Charging via USB-C rapid charge or desktop dock (included).

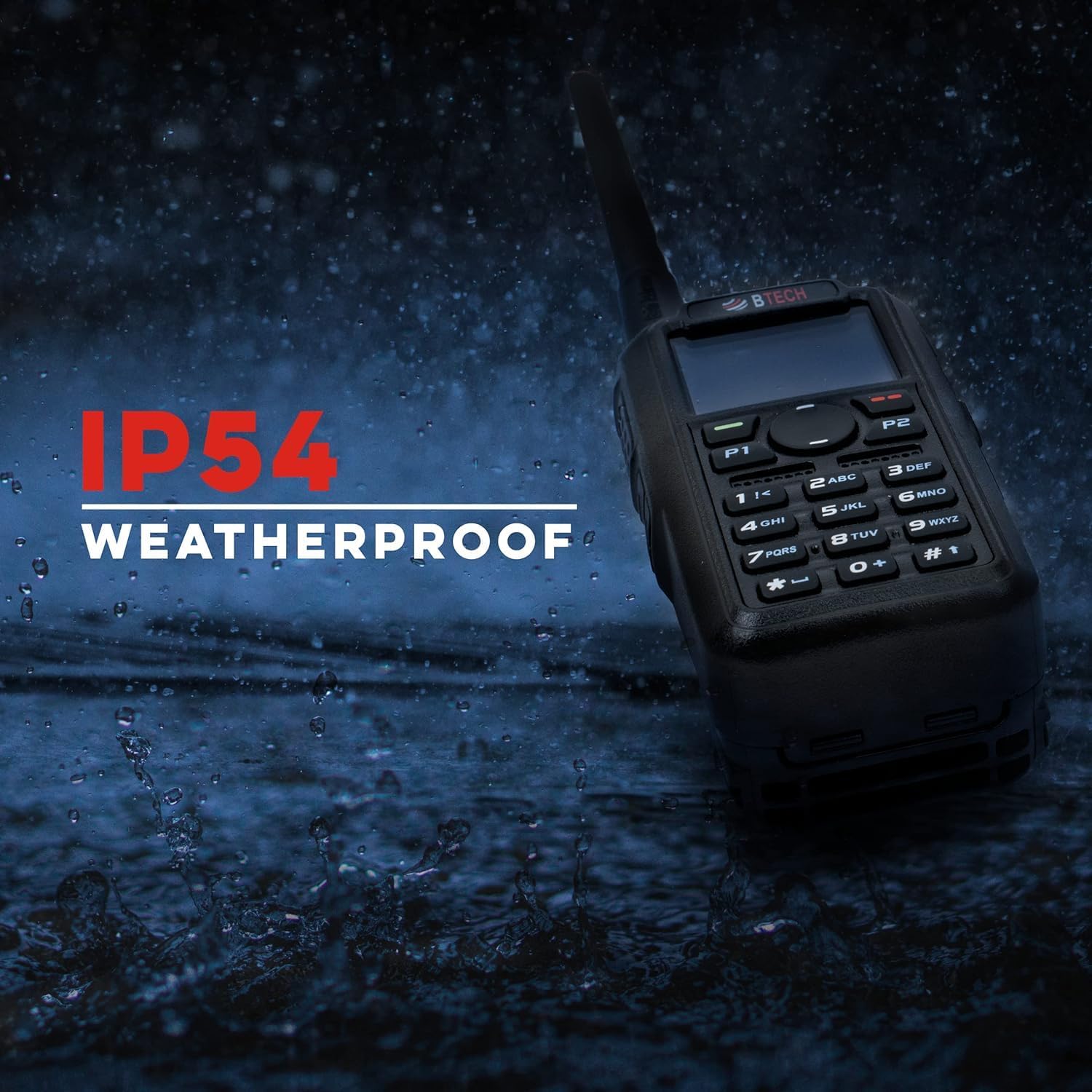

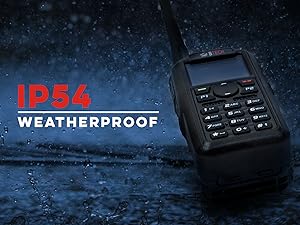

Physical Characteristics Dimensions with standard battery, no antenna are approximately 5.0” (H) x 2.0” (W) x 1.5” (D). With antenna, about 10.5” (H), with belt clip about 2.0” (D). Weight ~11.3 oz (with 3100 mAh battery), 10.4 oz (with 2100mAh battery) . Operating temperature –20°C to +55°C (–4°F to +131°F), storage temperature –30°C to +60°C (–22°F to +140°F). Water/dust resistance rated IP54 (protected against limited dust ingress and water splashes).
Approvals & Certification FCC Part 90 and Part 97 Certified (Commercial & Amateur Use). CE certification meets various compliance standards in applicable regions.

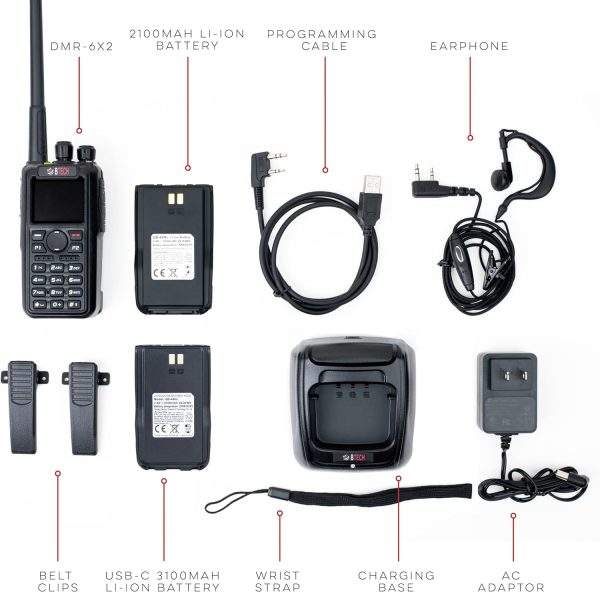

Standard Package Contents DMR-6X2 radio unit, 3100 mAh USB-C rechargeable battery, 2100 mAh rechargeable battery, 2 belt clips, 6” dual-band SMA-F antenna, earpiece kit (K1 connector), charger base & AC adapter, USB programming cable (Windows PC required for CPS), wrist strap, and user manual.
Software Visit baofengtech.com/dmr for downloads.



Product Description

BTECH DMR-6X2 DMR & Analog Dual Band Two-Way Radio (USB-C Battery) – 7W VHF/UHF (136-174MHz & 400-480MHz), Encryption, GPS, Talker Alias, APRS, Voice Recording, includes Accessory Kit with 2 Batteries
